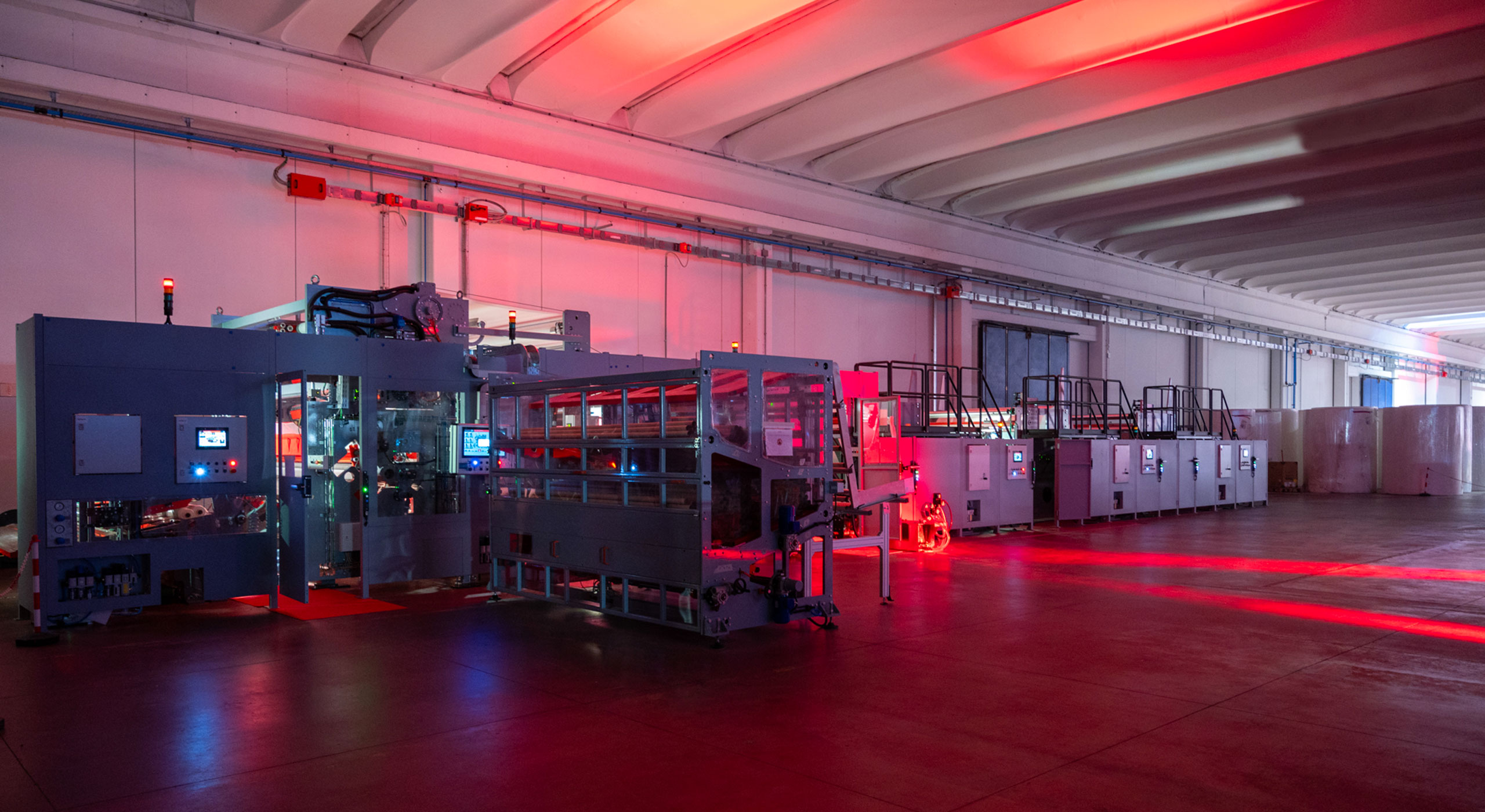

Tissue Converting Solutions
High-end tissue converting line for Consumer and Professional products.
Designed to save energy, maximize operational efficiency and enhance the quality of final products.
Complete certified line for “TRANSIZIONE 5.0”

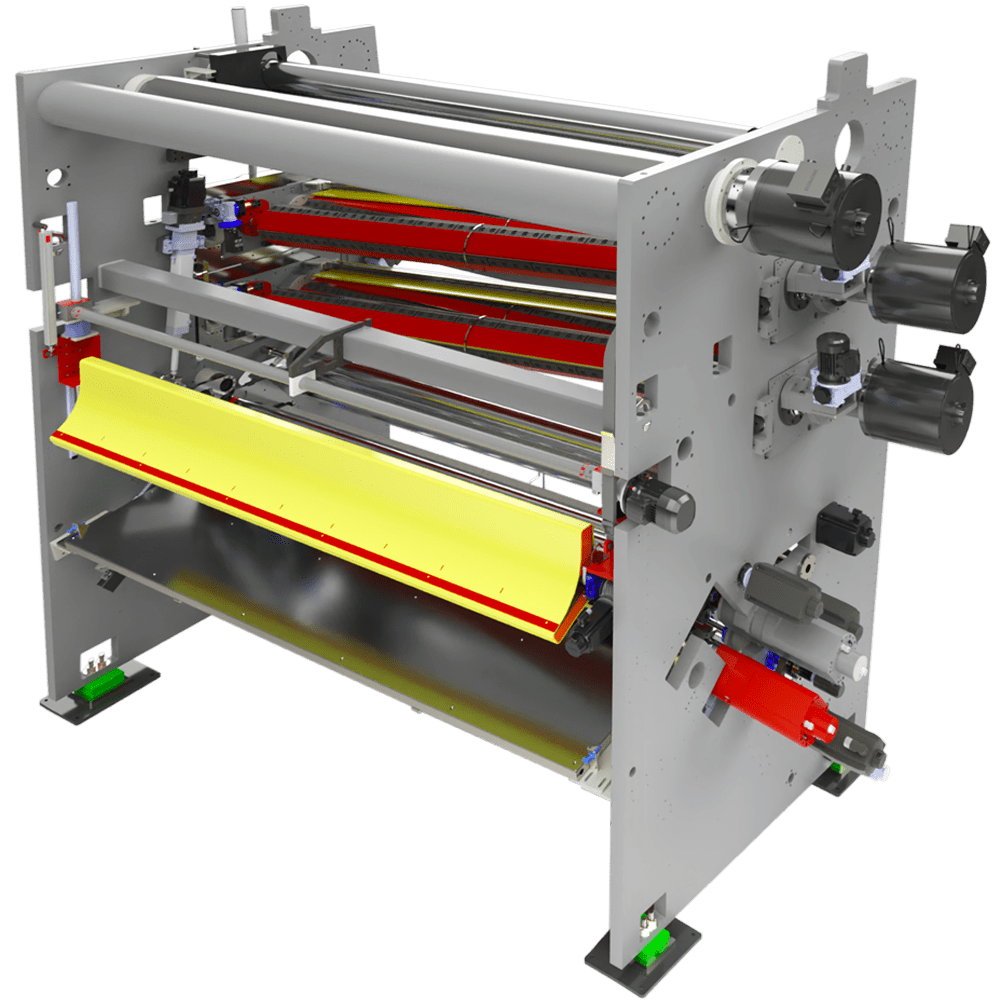

GENIUM REWINDER
Working speed up to 700 m/min
Roll diameter range 90–350 mm
Width from 2750 up to 3650 mm
PATENTED
Double rider rolls winding system, the log is controlled by three rolls
Uniform winding profile from the core to the last sheet
PATENTED
Cradles adjustable by HMI
Cradles are designed for wide core range:
from 20 to 80 mm
Easy and quick core change
Double perforation system
2 Revolving Perforation rolls 6 blades each
2 Fixed Perforation rolls 4 blades each with axial movement
Perforation length range:
- 90-180 mm with 6 blades
- 180-360 mm with 3 blades
- 270-540 mm with 2 blades
Blades Gap Adjustable By Touch Panel

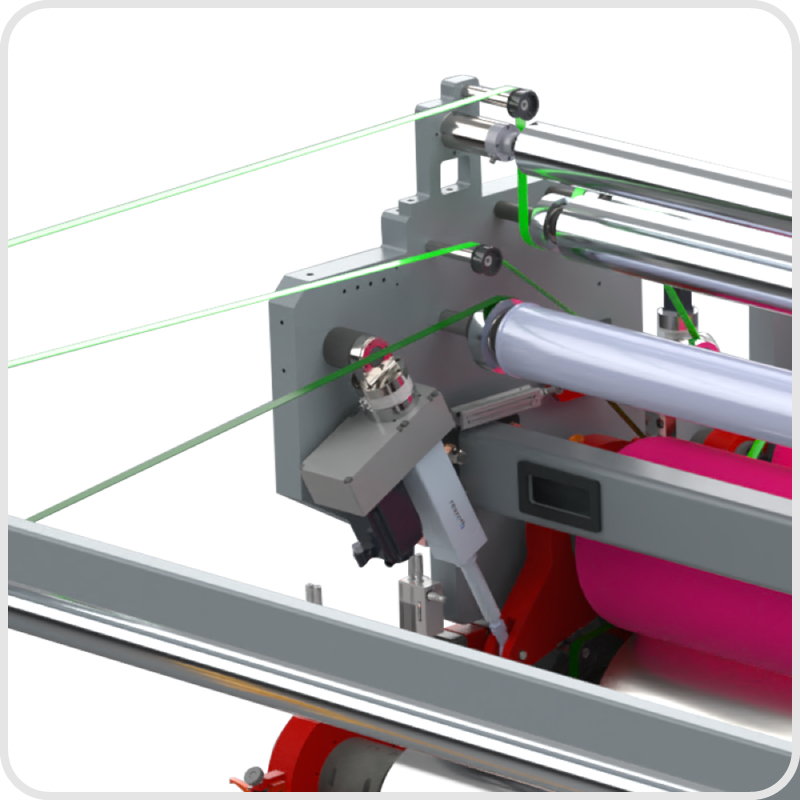

EMBOSSER
The newest embossing solution with 3 engraved steel rolls working simultaneously
Working speed up to 700 m/min
Width from 2750 up to 3650 mm
For 2/3/4/5/6 ply products
- Easy access for cleaning and maintenance
- Higher Safety: automatic change of steel rolls managed by HMI
- Upper steel roll change without paper break
- NIP and lamination control by HMI
High web thickness and extreme softness
- Totale assenza di idraulica
- Feedback delle pressioni di goffratura su HMI
- Regolazione da pannello HMI della laminazione
- Assenza di cinghie, riduttori e ingranaggi
- Fase DESL e Punta-Punta automatica con regolazione da HMI
- Autoconfigurazione macchina completa tramite ricette
- Predisposto per laminazione ad acqua
- Regolazioni semplificate in macchina tramite pannellino mobile e comandi safety
Riduzione dei consumi energetici grazie alle nostre tecnologie (motori coppia, controllo servoattuato della goffatura, ...)
LATEST GENERATION
TORQUE MOTORS
Consistent power, energy optimization and cost reduction
Energy reduction up to 15%
Connection coupling torque motor – roll with automatic phasing Automatic roll engage for quick roll change More precise control and higher efficiency
FOUR LANE
LOG SAW
Independent motorization
for each lane
Speed up to250 cuts/min
Universal clamps rangefrom 90 mm to 240 mm No need to replace parts for different diameters Independent motorization for each lane Idle or motorized sharpening stones Shuttle trim eliminator
HMI
CONTROL PANEL
Remote access to individual production phase
User Friendly
All controls are easy to be managed
INNOVATION
Giotto Technologies R&D department stands out to createsustainable innovation throughout the converting processwith patented solutions.
CONSUMPTION
NOISE
COMPRESSED AIR
HYDRAULICS
