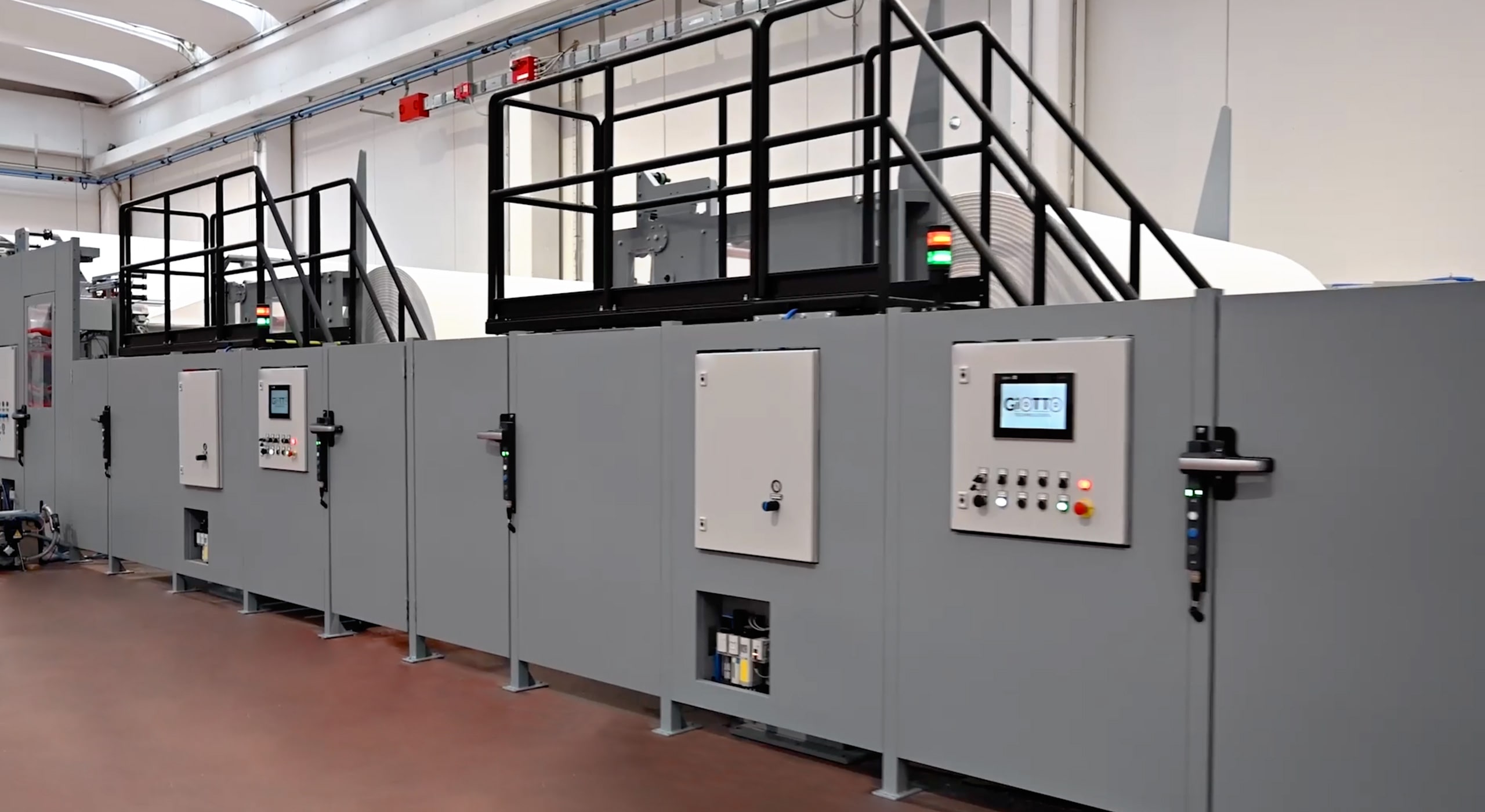

Tissue Converting Solutions
Complete converting line to produce high quality tissue roll products.
Designed to save energy, maximize operational efficiency and enhance the quality of final products.
Certified line for “TRANSIZIONE 5.0”

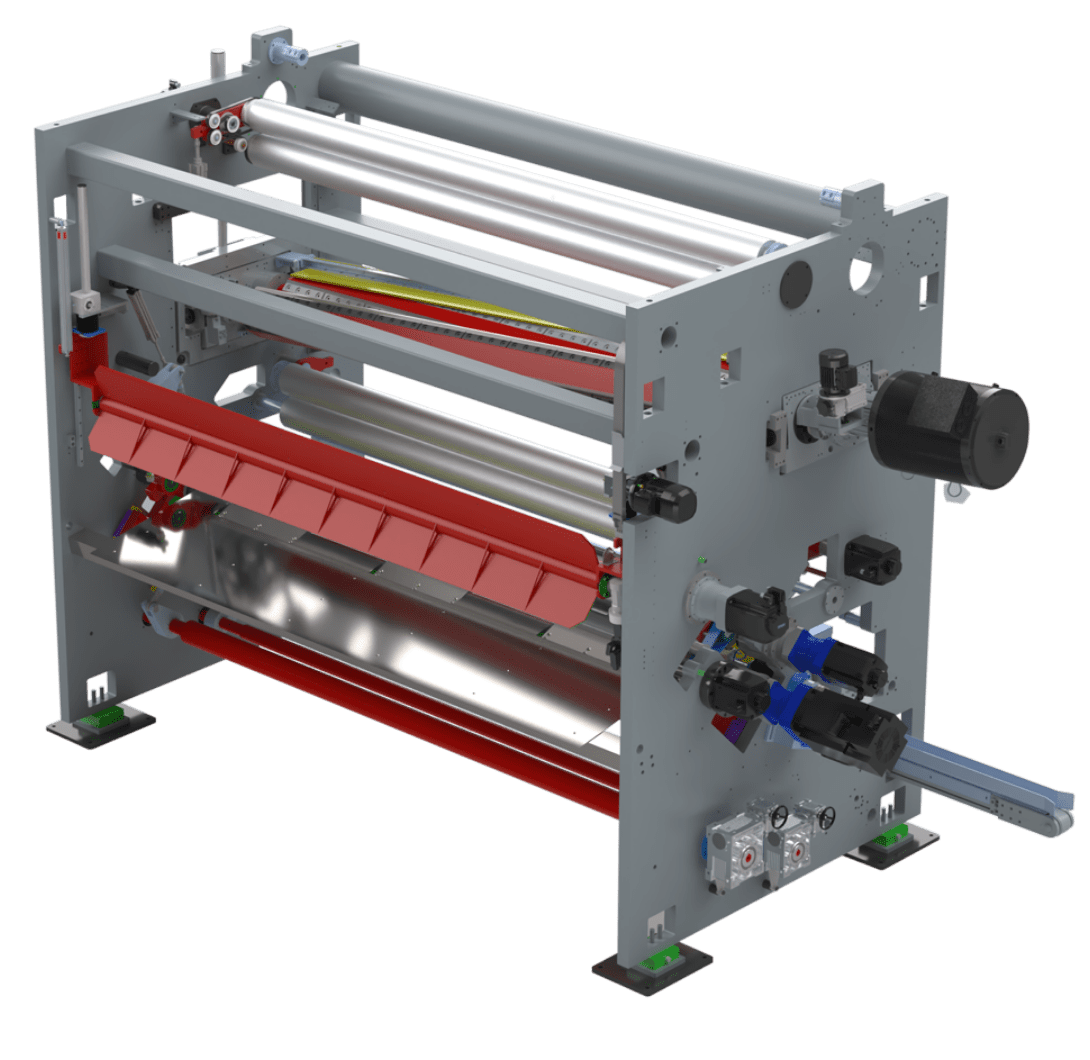

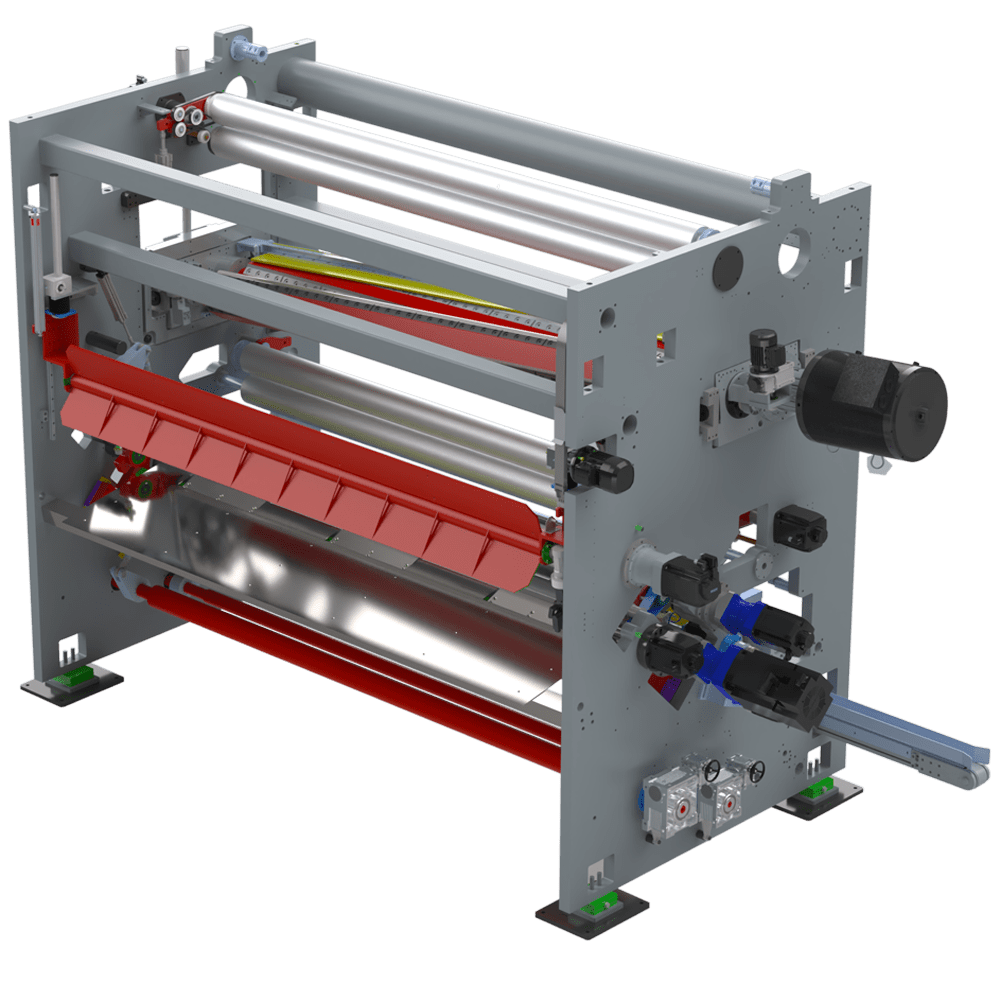

SMART REWINDER
Working speed up to 500 m/min or 600 m/min
Roll diameter range 90–200 mm
Width from 2750 up to 3650 mm
PATENTED

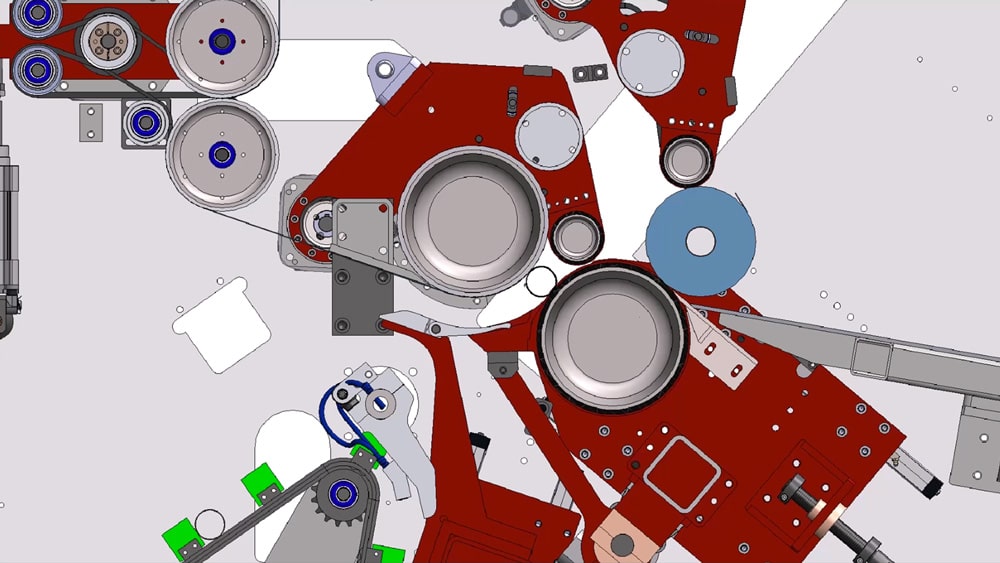

Double rider rolls winding system, the log is controlled by three rolls
Uniform winding profile from the core to the last sheet

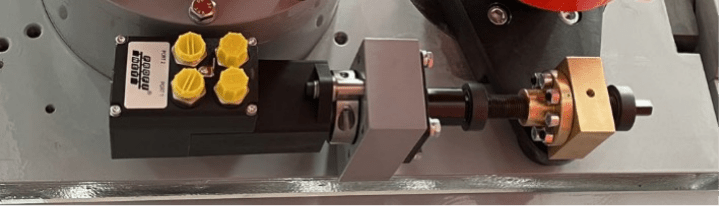

Double perforation system
Perforation roll 6 blades
Perforation length range:
- 90–180 mm with 6 blades
- 180-360 mm with 3 blades
- 270-540 mm with 2 blades
Reduced amount of glue applied
Quantity of glue always constant independently from speed
No need to remove cores after stop
Blades Gap Adjustable by Touch Panel

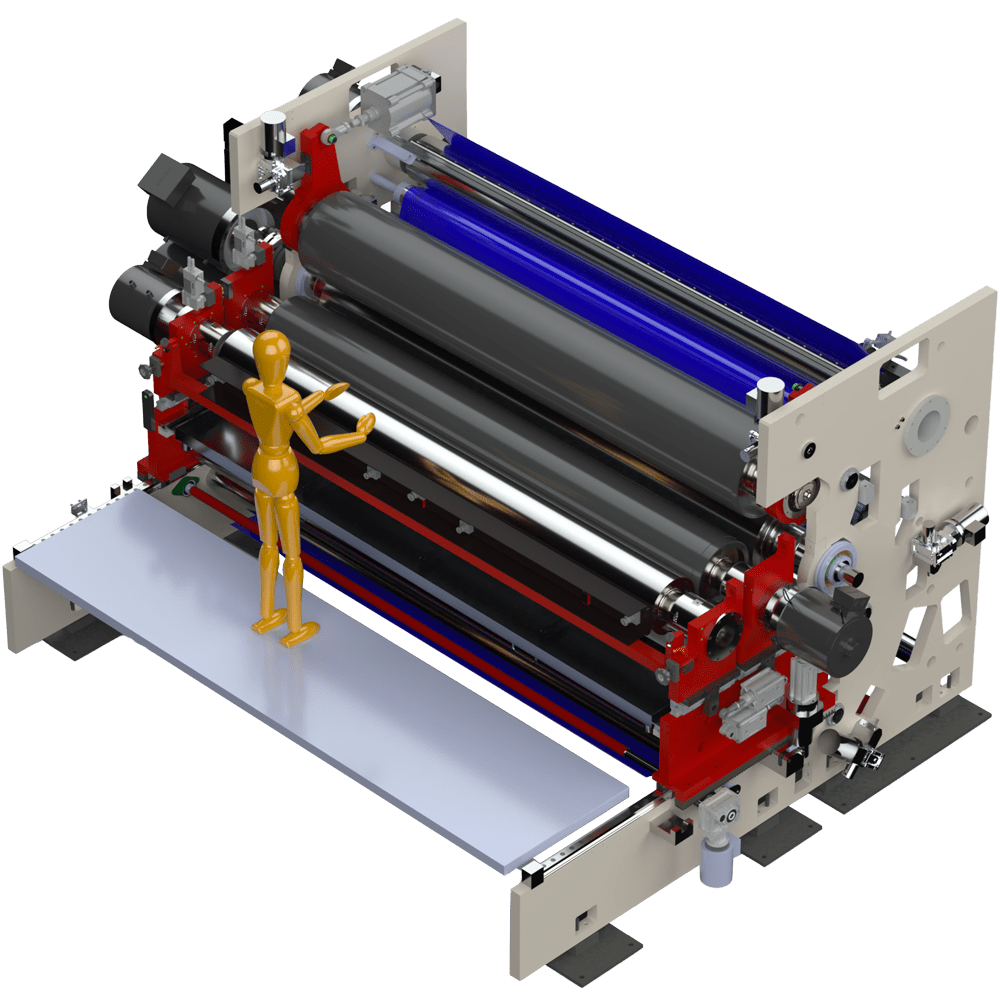

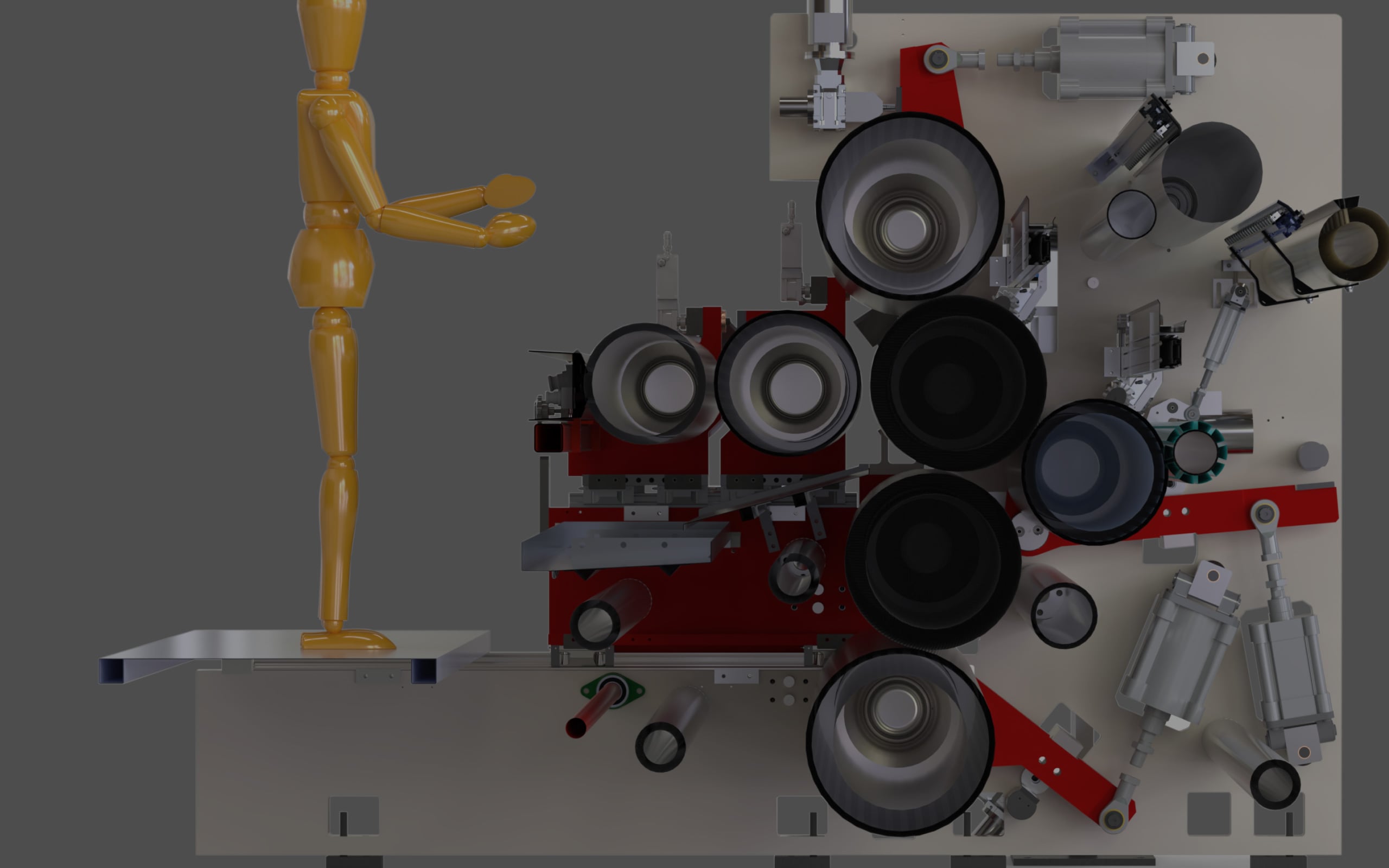

SMART EMBOSSER
Working speed up to 500 m/min or 600 m/min
Steel roll diameter 350 mm or 420 mm
Automatic change of steel rolls with stand-by rolls accumulator

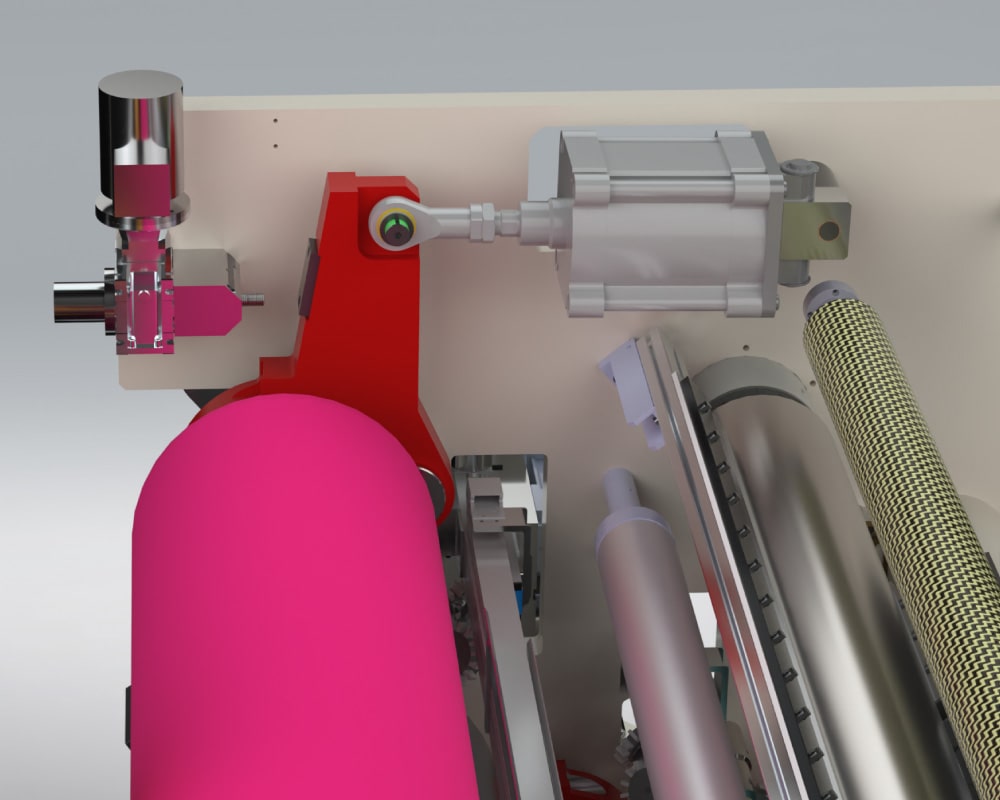

Nip Control
- Rubber roll opening/closing by means of pneumatic cylinders
- Nip adjustment by HMI
- Nip position can be saved in product recipe
- Adjustments can be done while the machine is running

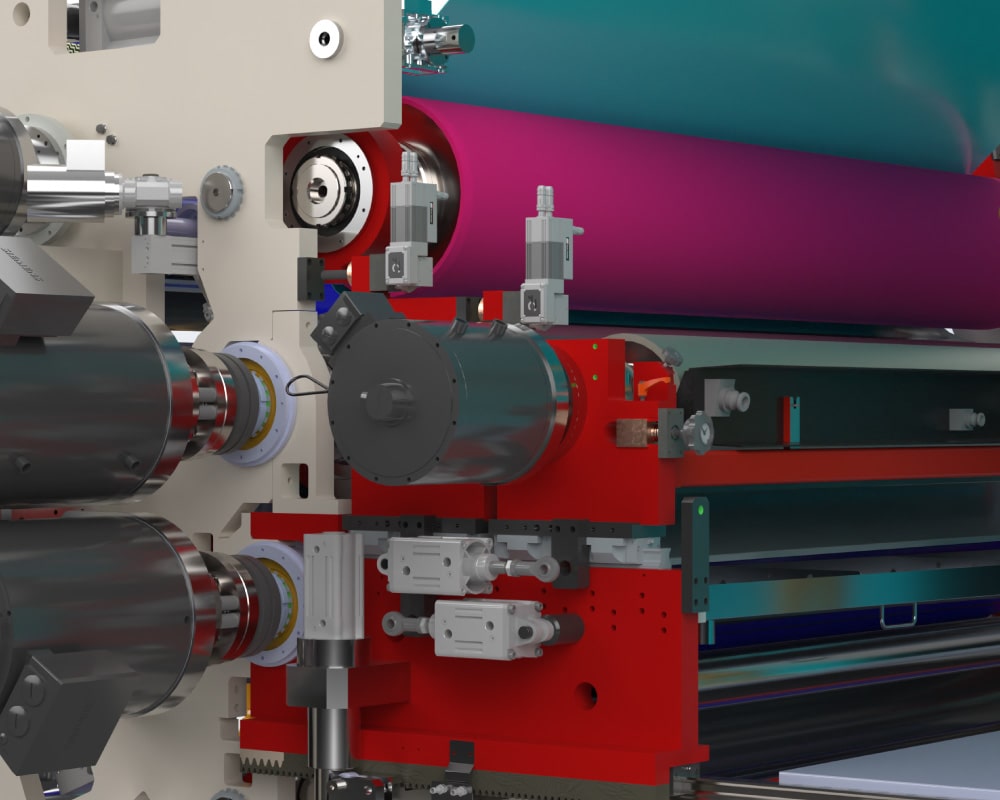

Lamination Unit
- Clichè and Anilox roll opening/closing by means of pneumatic cylinders
- Glue rolls gap adjustable by touch panel
- Adjustments can be done while the machine is running
Higher safety - operators remain behind guarding
LATEST GENERATION
TORQUE MOTORS
Consistent power, energy optimization and cost reduction
Energy reduction up to 15%
Connection coupling torque motor – roll with automatic phasing Automatic roll engage for quick roll change More precise control and higher efficiency
FOUR LANE
LOG SAW
Independent motorization
for each lane
Speed up to250 cuts/min
Universal clamps rangefrom 90 mm to 240 mm No need to replace parts for different diameters Independent motorization for each lane Idle or motorized sharpening stones Shuttle trim eliminator
HMI
CONTROL PANEL
Remote access to individual production phase
User Friendly
All controls are easy to be managed
INNOVATION
Giotto Technologies R&D department stands out to createsustainable innovation throughout the converting processwith patented solutions.
