Tissue Converting Solutions

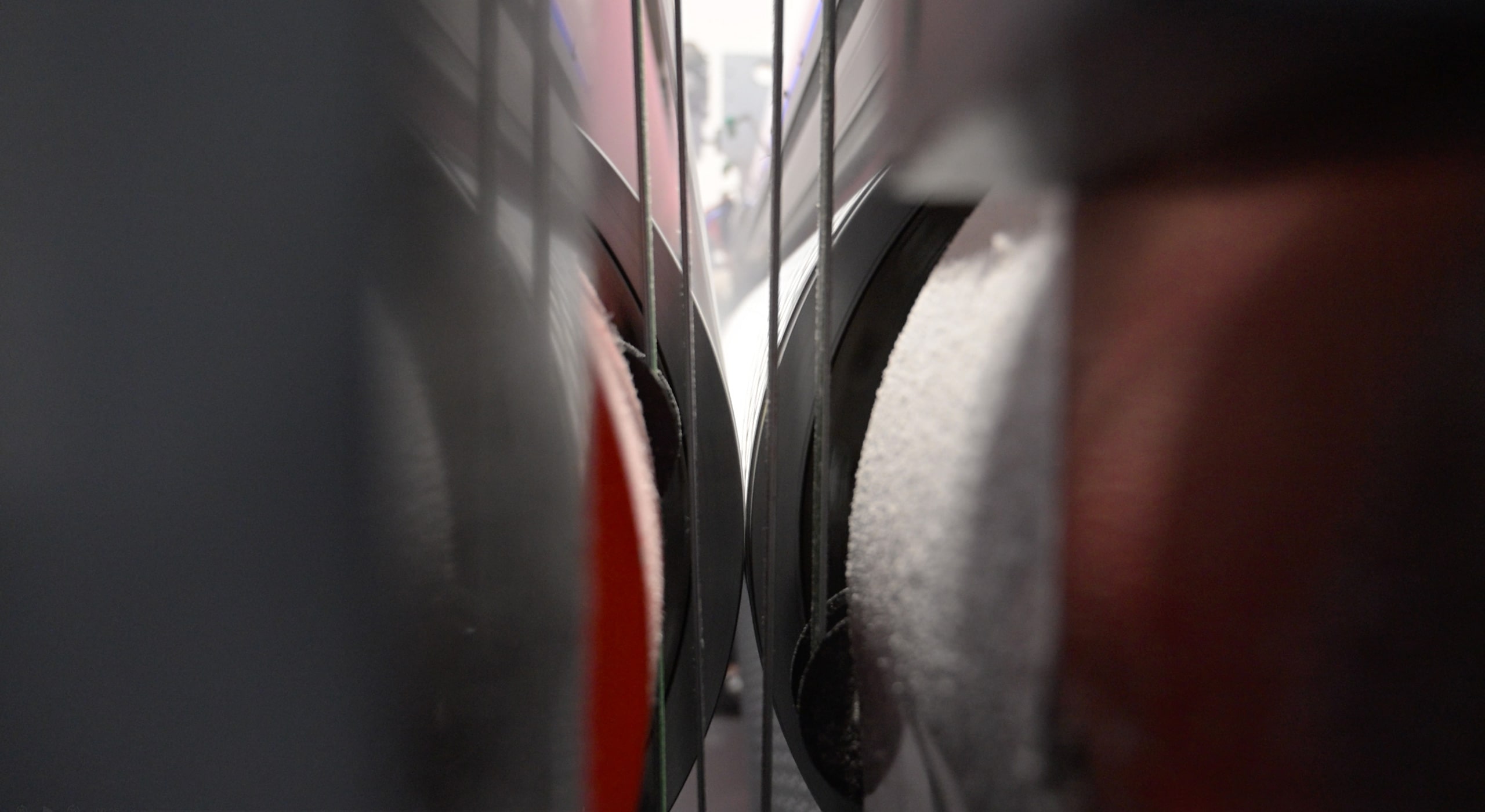

The newest embossing solution with 3 engraved steel rolls working simultaneously.
For 2/3/4/5/6 ply products
1 machine, 8 different lamination solutions

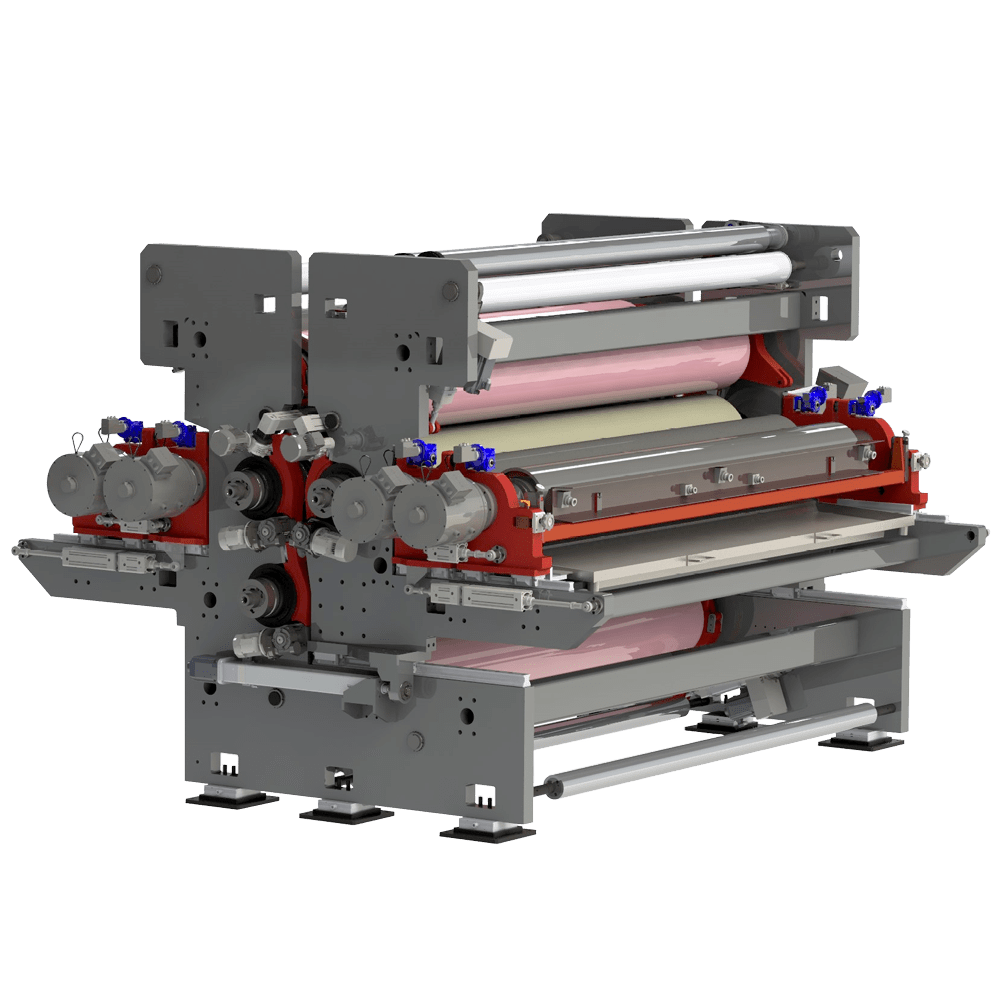

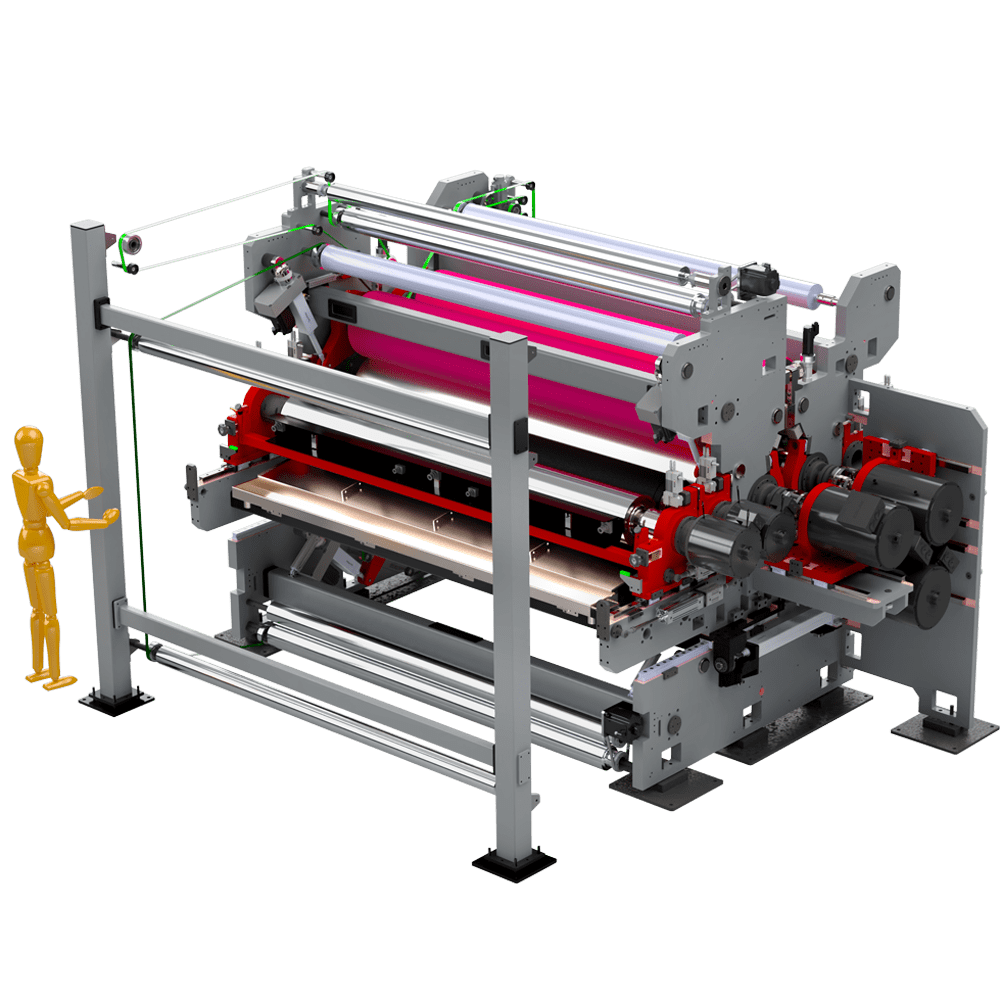

EMBOSSER

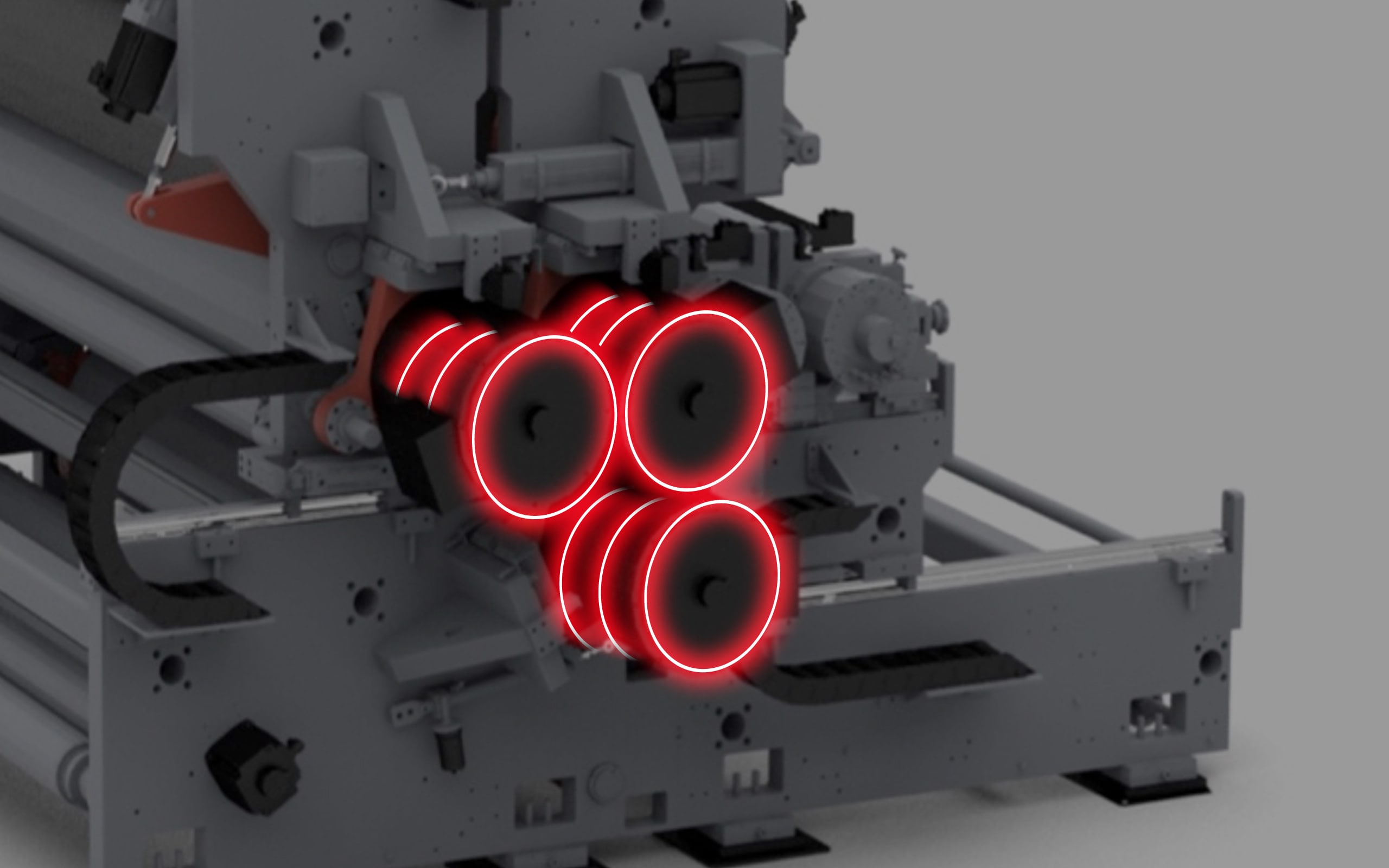

The newest embossing solution with 3 engraved steel rolls working simultaneously
Working speed up to 700 m/min
Width from 2750 up to 3650 mm
For 2/3/4/5/6 ply products
- Easy access for cleaning and maintenance
- Higher Safety: automatic changeof steel rolls managed by HMI
- Upper steel roll change without paper break
High web thickness and extreme softness
- Totale assenza di idraulica
- Feedback delle pressioni di goffratura su HMI
- Regolazione motorizzata della laminazione
- Fase DESL e Punta-Punta automatica con regolazione da HMI
- Autoconfigurazione macchina completa tramite ricette
- Predisposto per laminazione ad acqua
- Regolazioni semplificate in macchina tramite pannellino mobile e comandi safety
Riduzione dei consumi energetici grazie al controllo servoattuato della goffratura

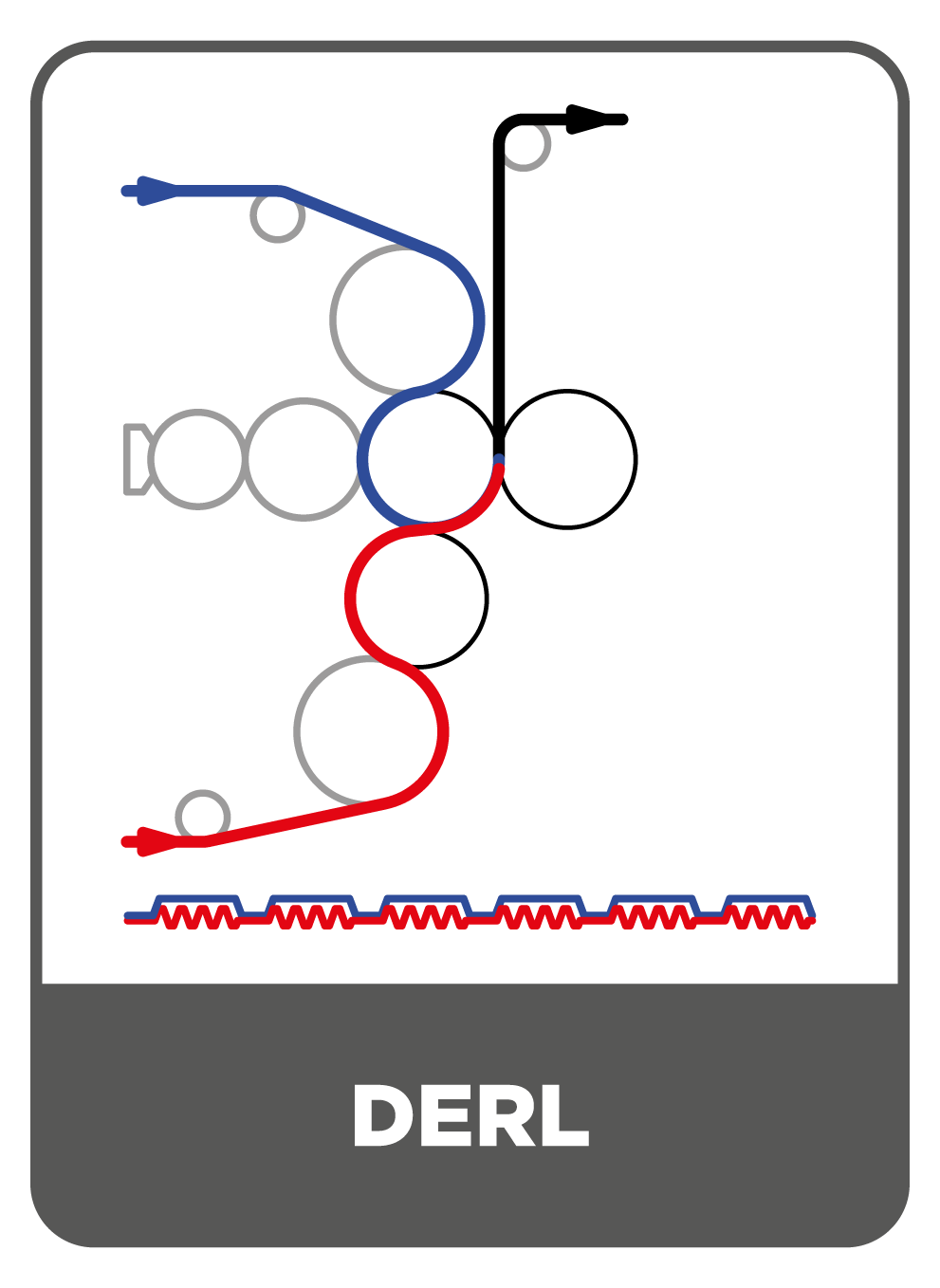

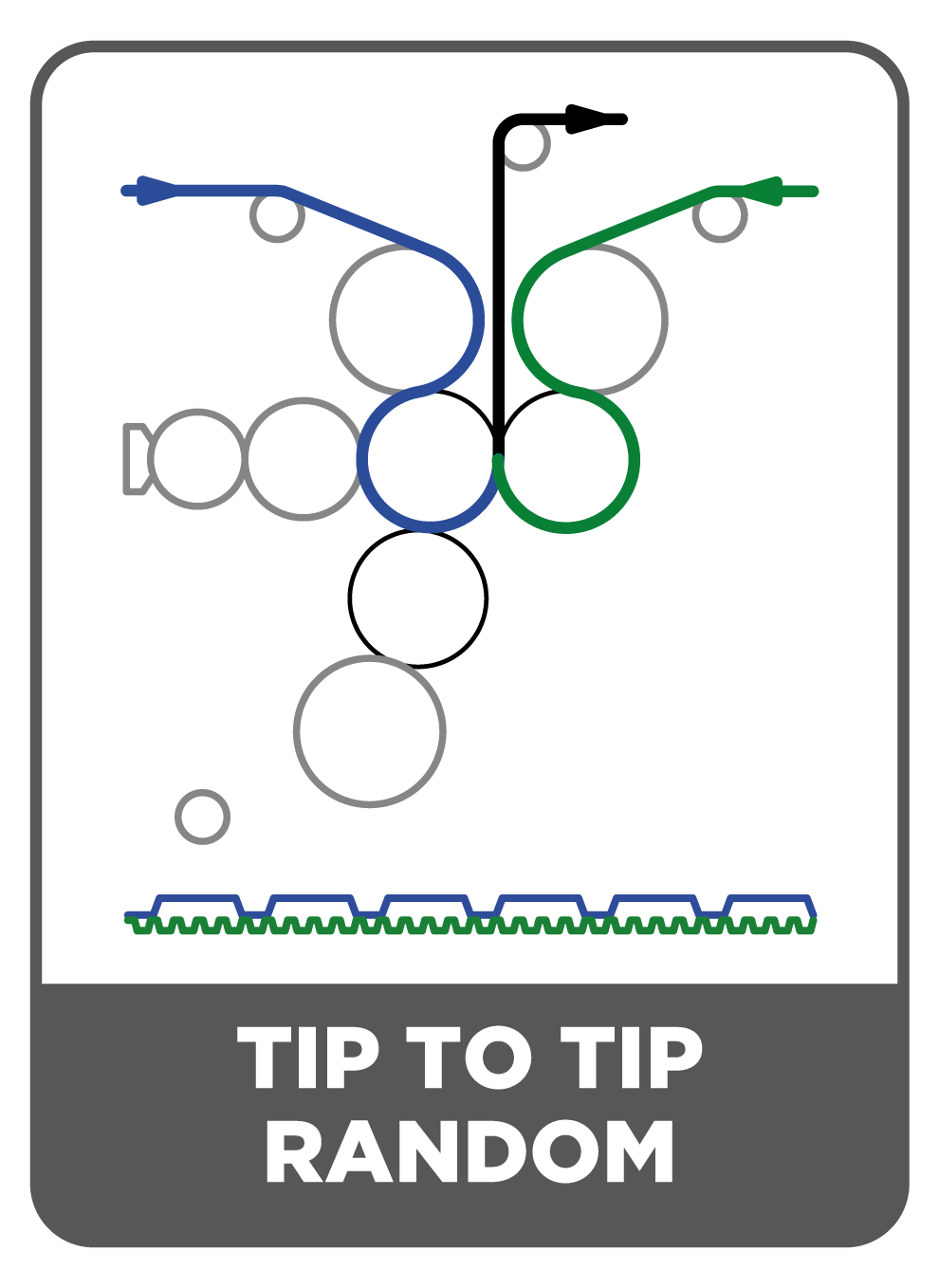

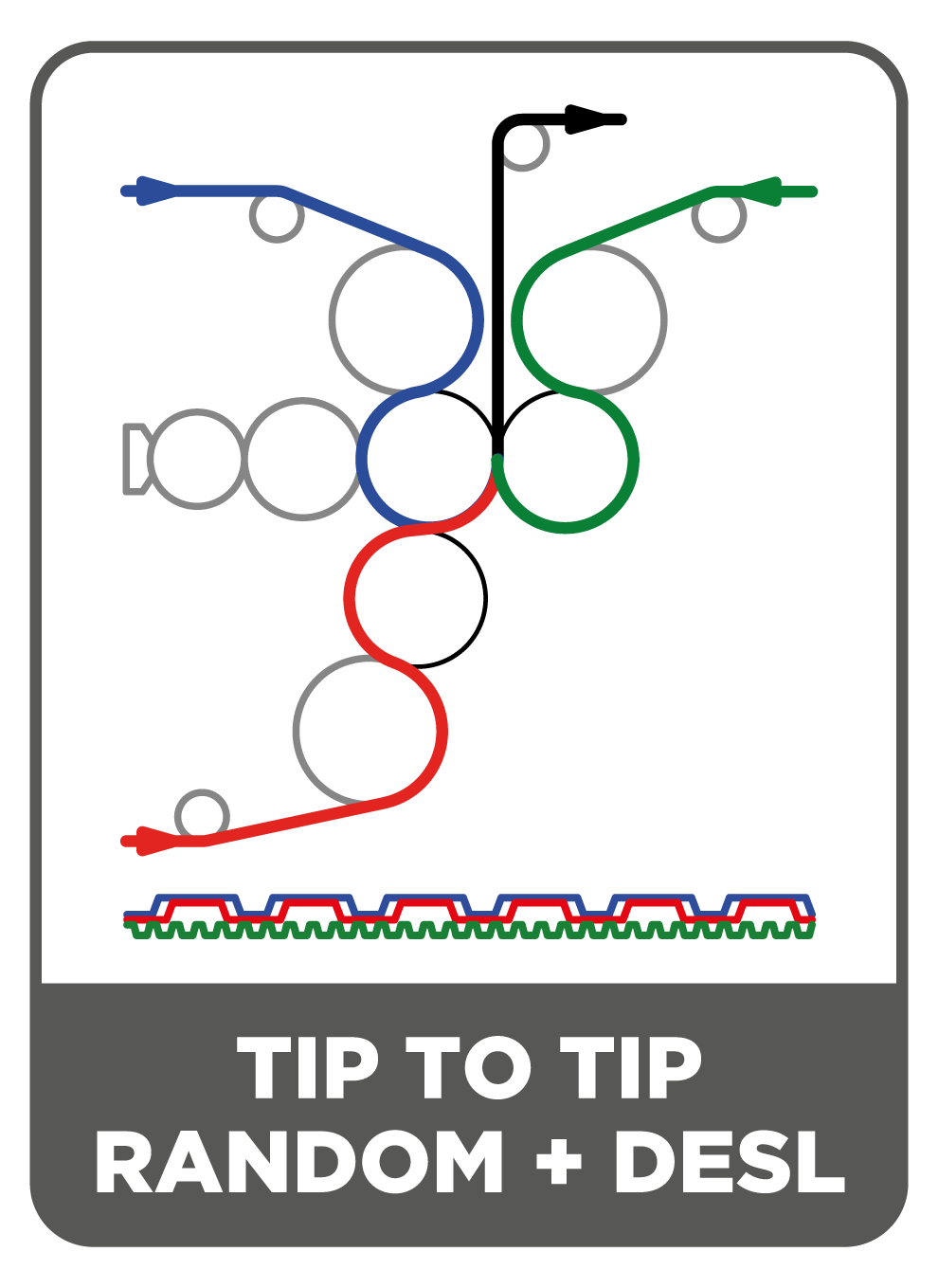

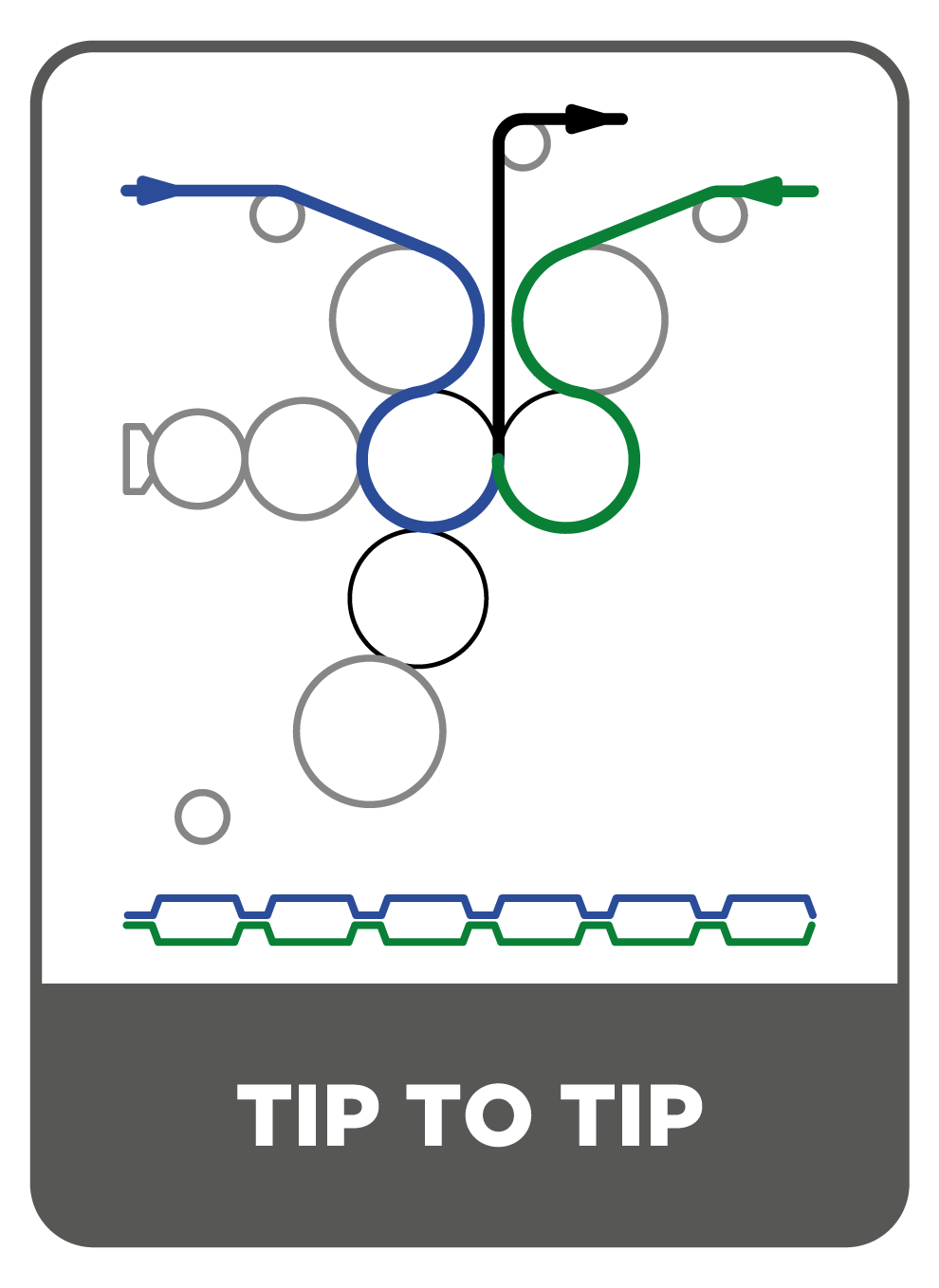

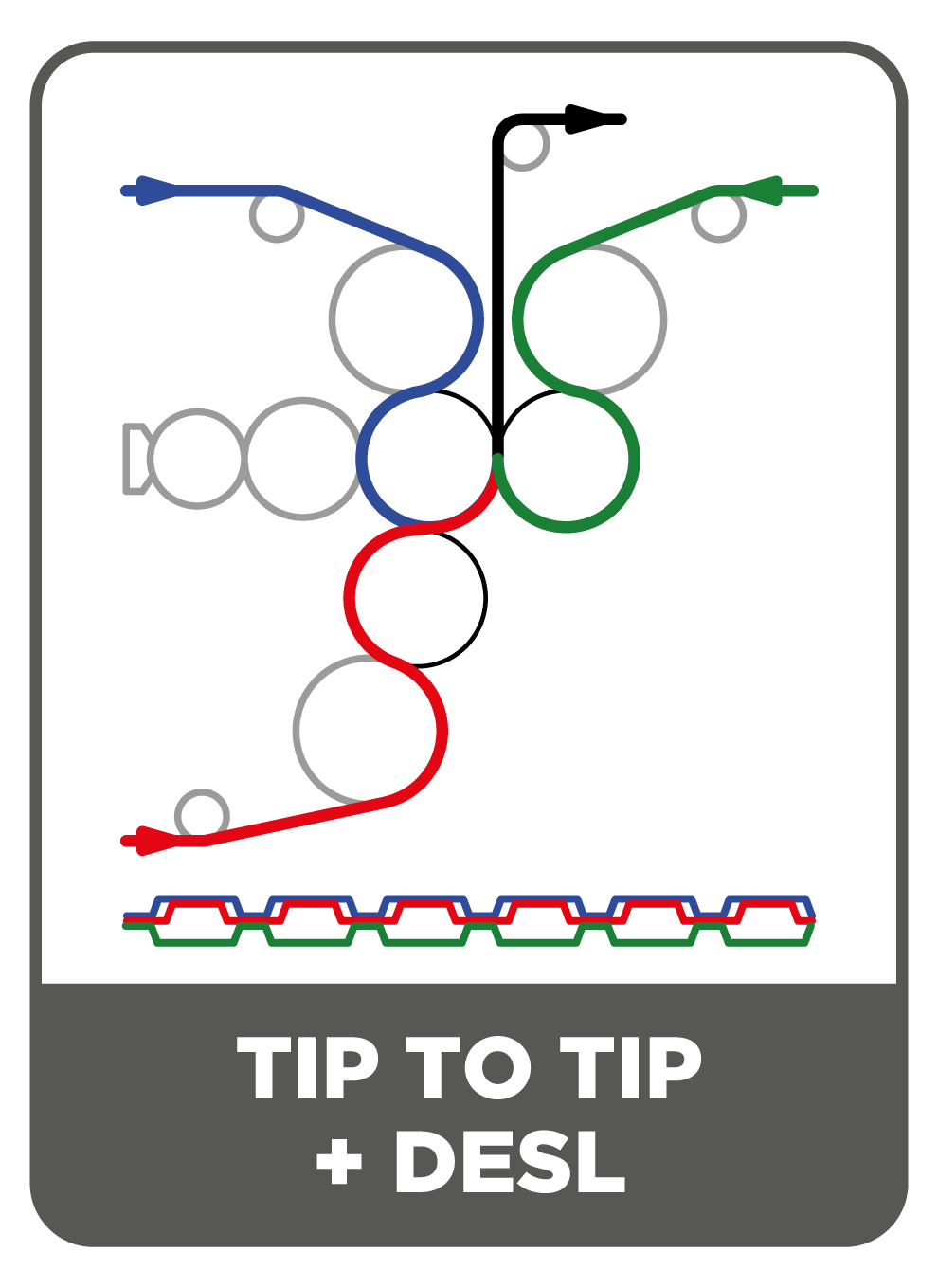

Multiple embossing type configurations:
one machine, 8 different lamination solutions
LATEST GENERATION

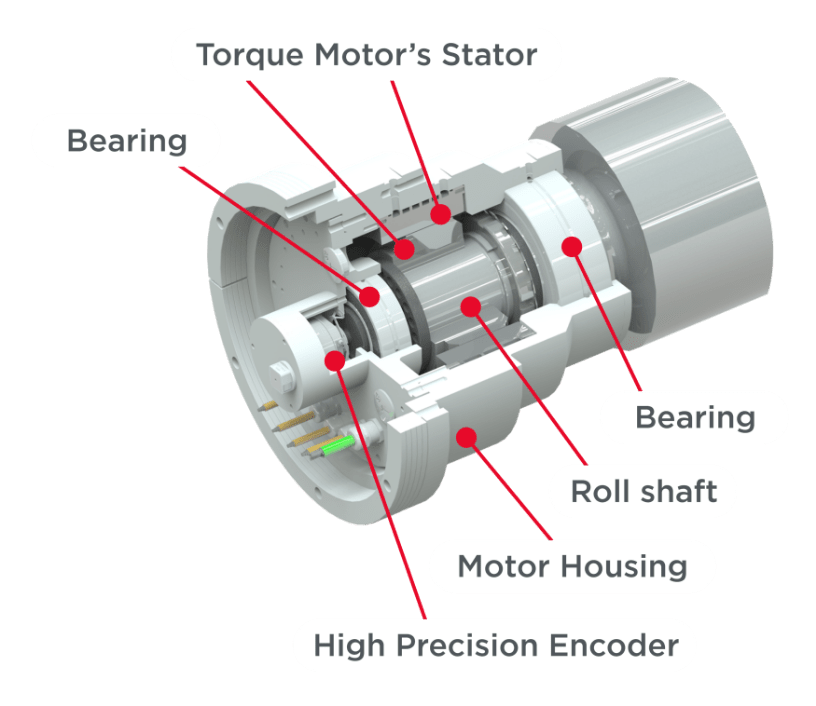

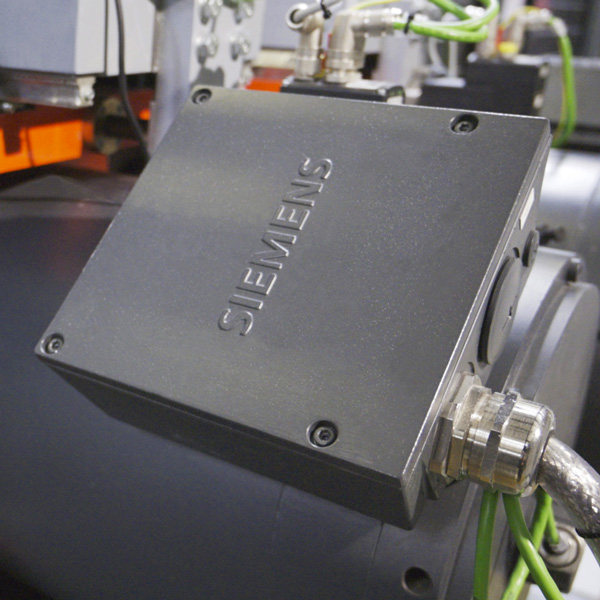

TORQUE MOTORS
Consistent power, energy optimization and cost reduction
Energy reduction up to 15%
Connection coupling torque motor – roll with automatic phasing Automatic roll engage for quick roll change More precise control and higher efficiency

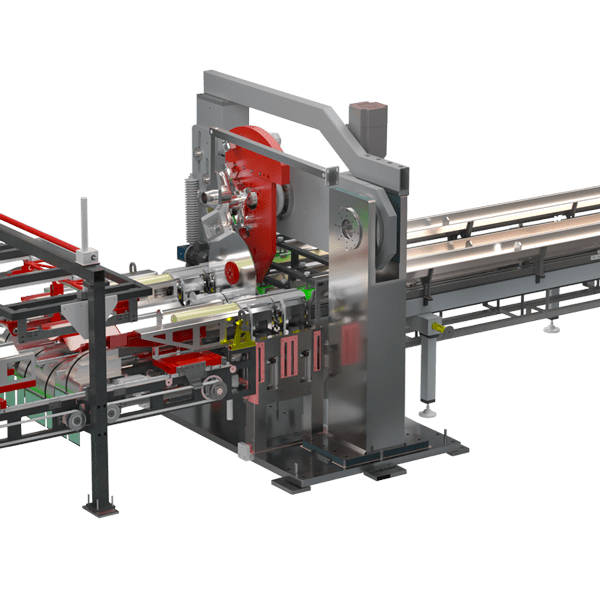

FOUR LANE
LOG SAW
Independent motorization
for each lane
Speed up to250 cuts/min

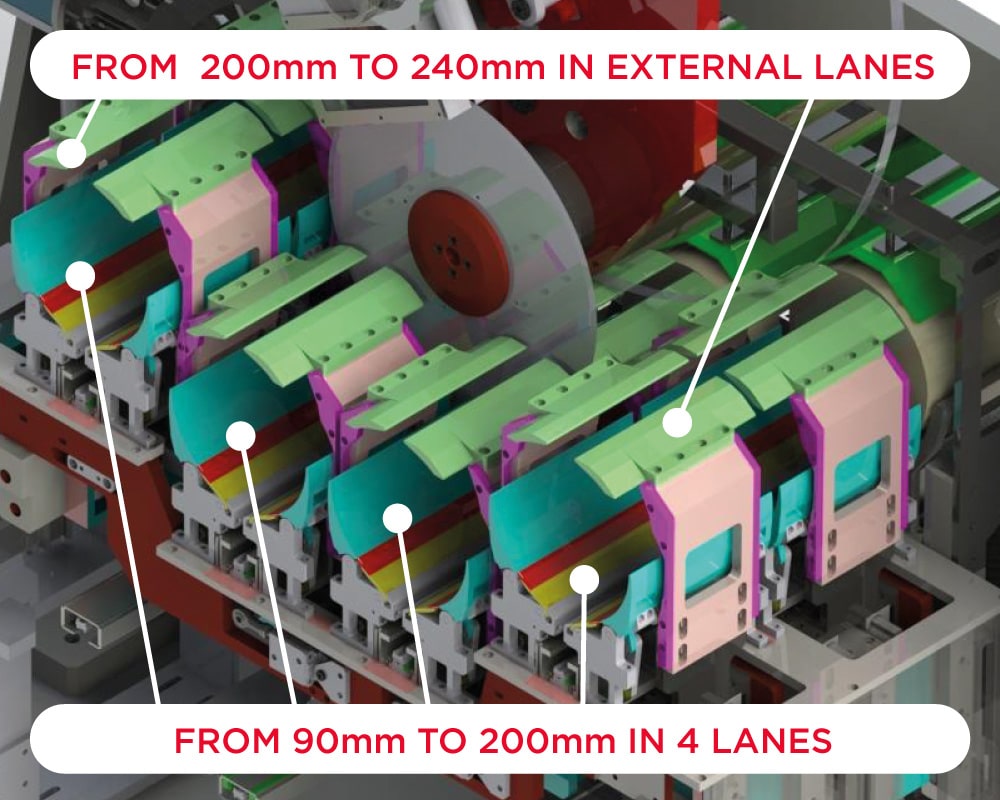

Universal clamps rangefrom 90 mm to 240 mm No need to replace parts for different diameters Independent motorization for each lane Idle or motorized sharpening stones Shuttle trim eliminator

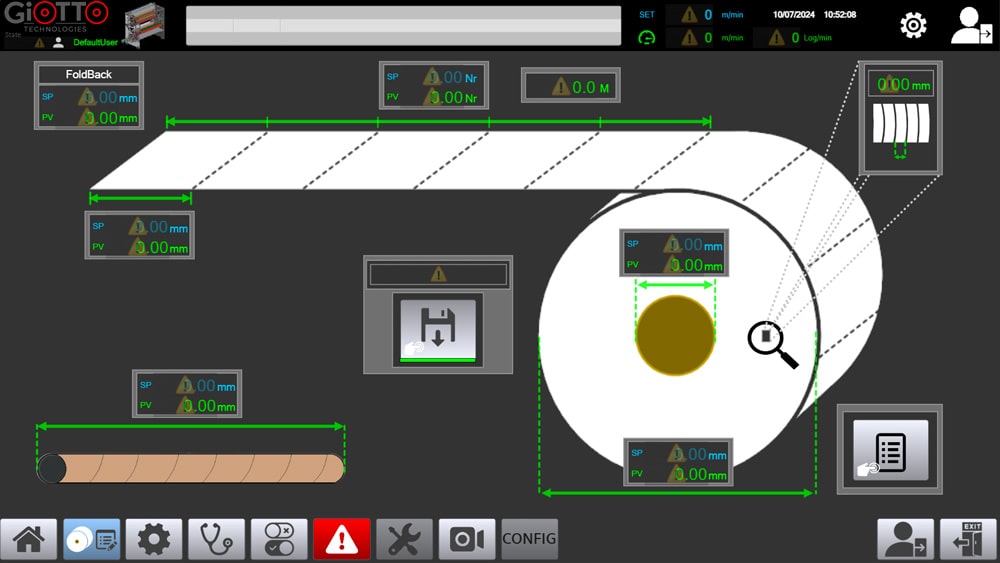

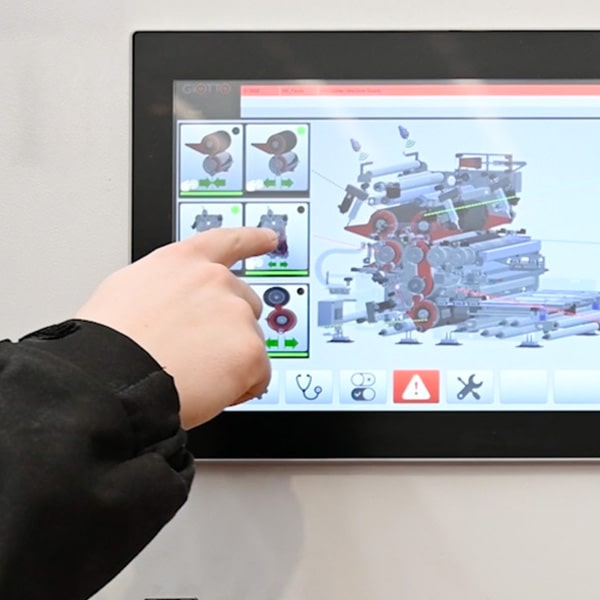

HMI
CONTROL PANEL
Remote access to individual production phase
User Friendly
All controls are easy to be managed
INNOVATION
Giotto Technologies R&D department stands out to createsustainable innovation throughout the converting processwith patented solutions.
CONSUMPTION
NOISE
COMPRESSED AIR
HYDRAULICS
